Learn which hardware peripherals and cables are compatible with the branded Dutchie Register terminal (Elo) device, along with receipt paper and labels for the compatible printers.
Compatible hardware is available from these suppliers:
- United States: Connection, PLS, Venture
- Canada: Venture

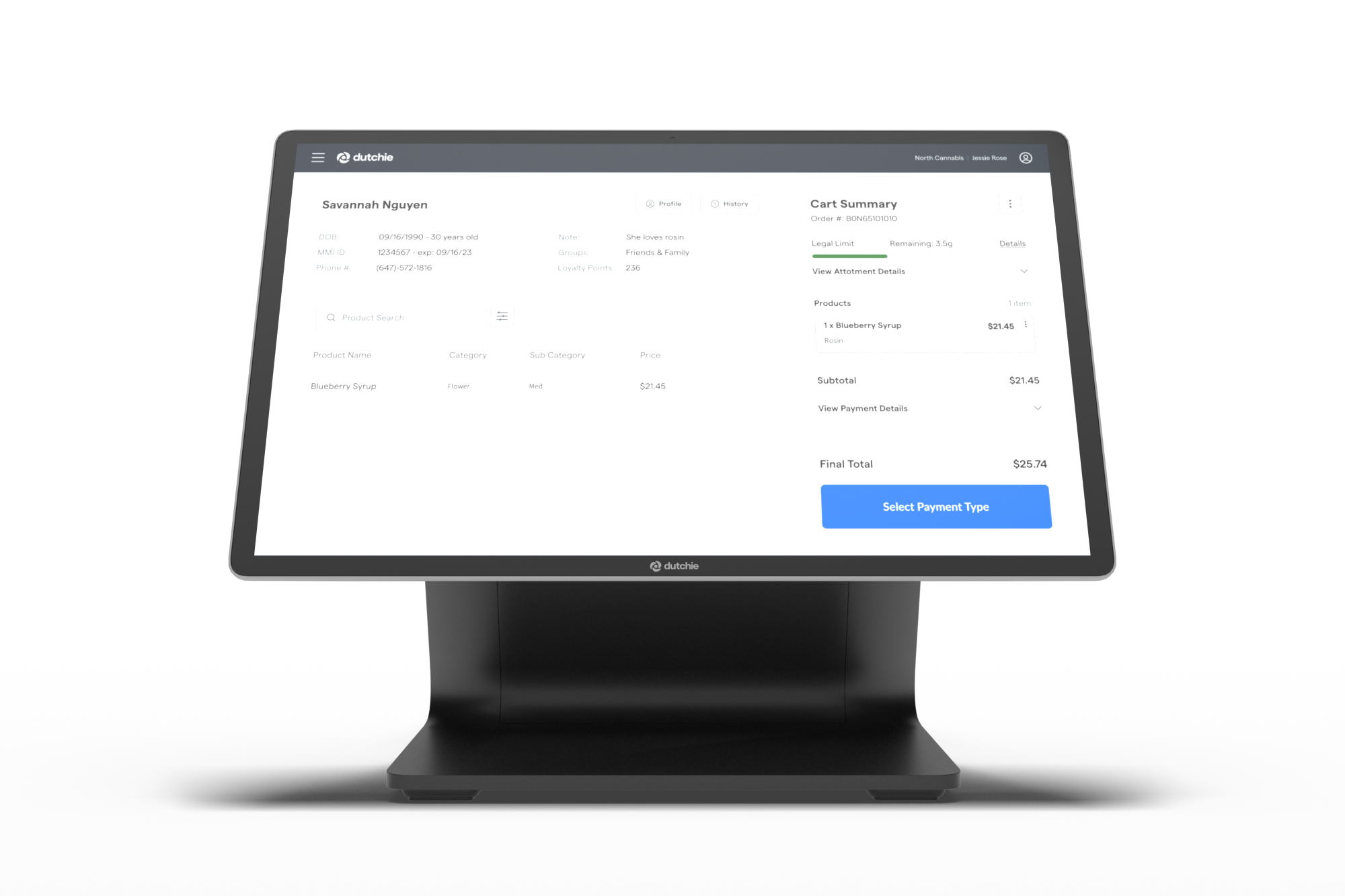

This article applies only to Dutchie Register terminal devices like the one pictured below.
For all other devices, see Recommended hardware for the Dutchie Register web application.
Peripherals
Cash drawer | |||
| Manufacturer | Model | Photo & Measurements | Also used by |
| APG | 16x16 Vasario Cash Drawer |
in: 16.31 w x 16.25 d x 4.31 h cm: 41.4 w x 41.28 d x 10.95 h |
Cova TechPOS |
Barcode/QR code scanners | |||
| Manufacturer | Model | Photo & Measurements | Also used by |

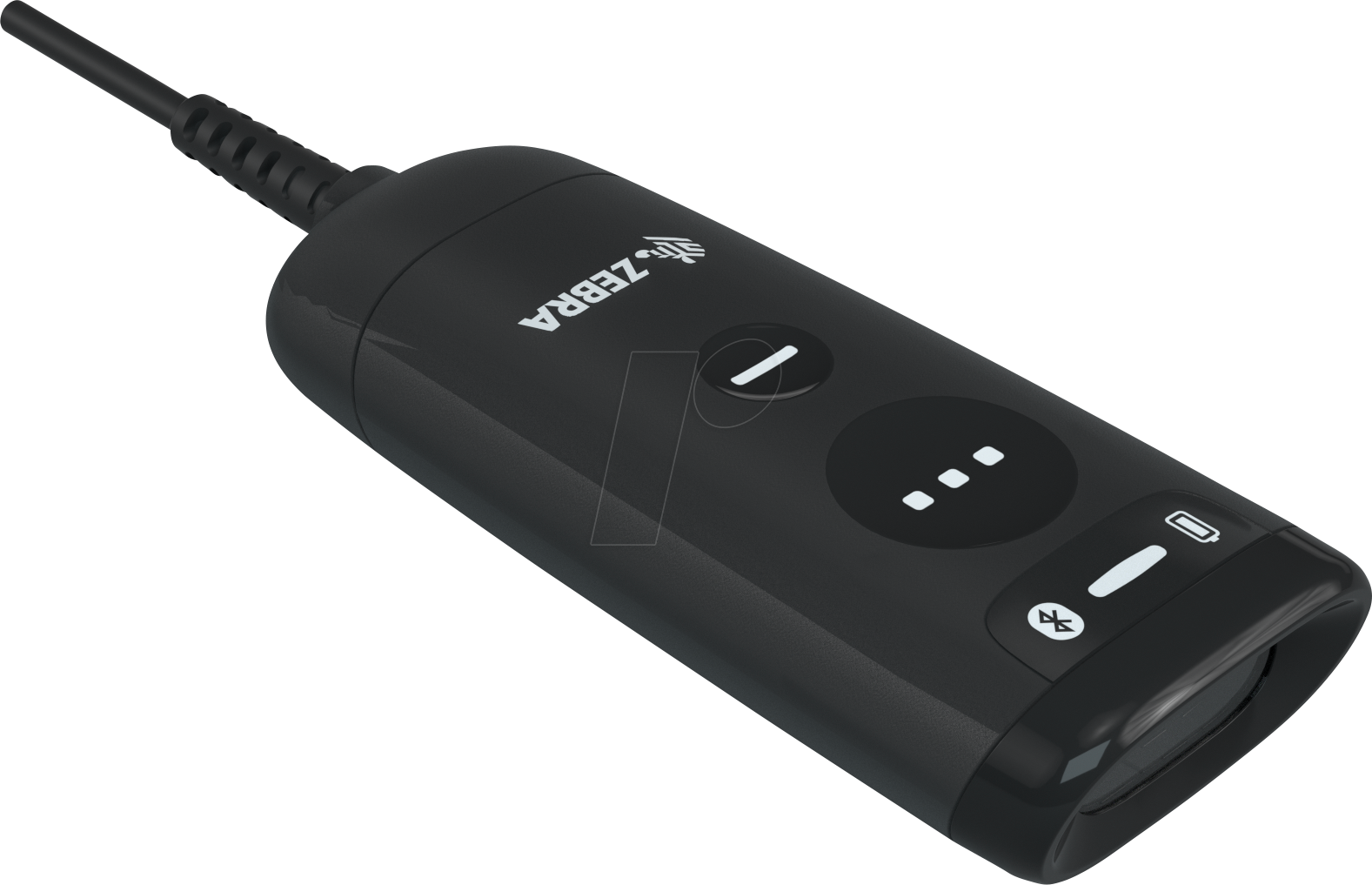

| Zebra | CS6080 Corded barcode scanner/2D imager |
in: 1.8 w x 4.3 d x 0.9 h cm: 4.6 w x 10.9 d x 2.3 h |
|

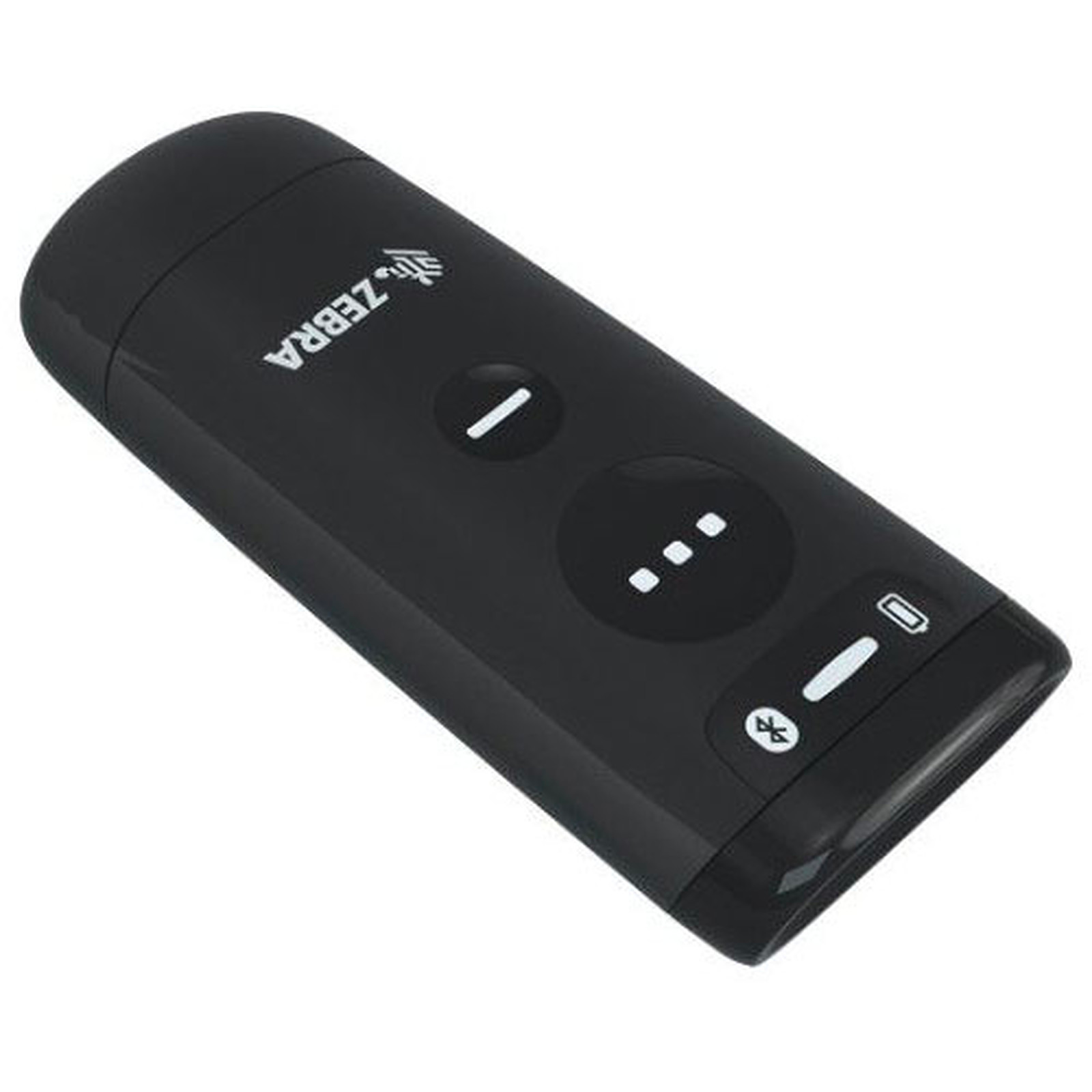

| Zebra | CS6080 Cordless barcode scanner/2D imager | in: 1.8 w x 4.3 d x 0.9 h cm: 4.6 w x 10.9 d x 2.3 h |
|
| Zebra |
CS6080-SR Stand *Optional accessory for CS6080 |
||
| Zebra |
CS6080-SR 7 ft (2.1 m) Converter Cable *Optional accessory for CS6080 Cordless |
||
| Zebra |
CS6080 Spare Battery *Optional accessory for CS6080 |
||

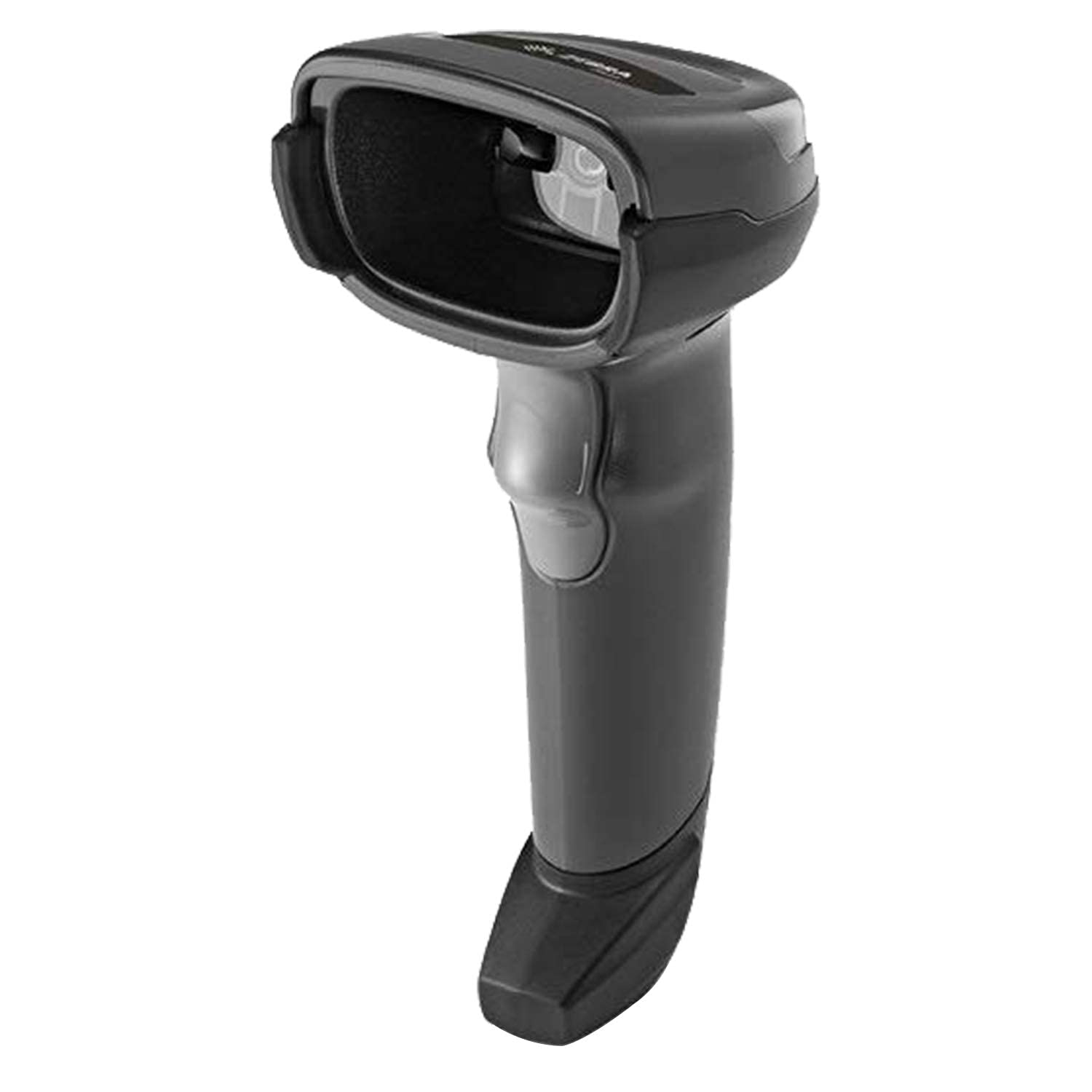

| Zebra | DS2208 |
in: 2.6 w x 3.9 d x 6.5 h cm: 6.6 w x 9.9 d x 16.5 h |
Cova |

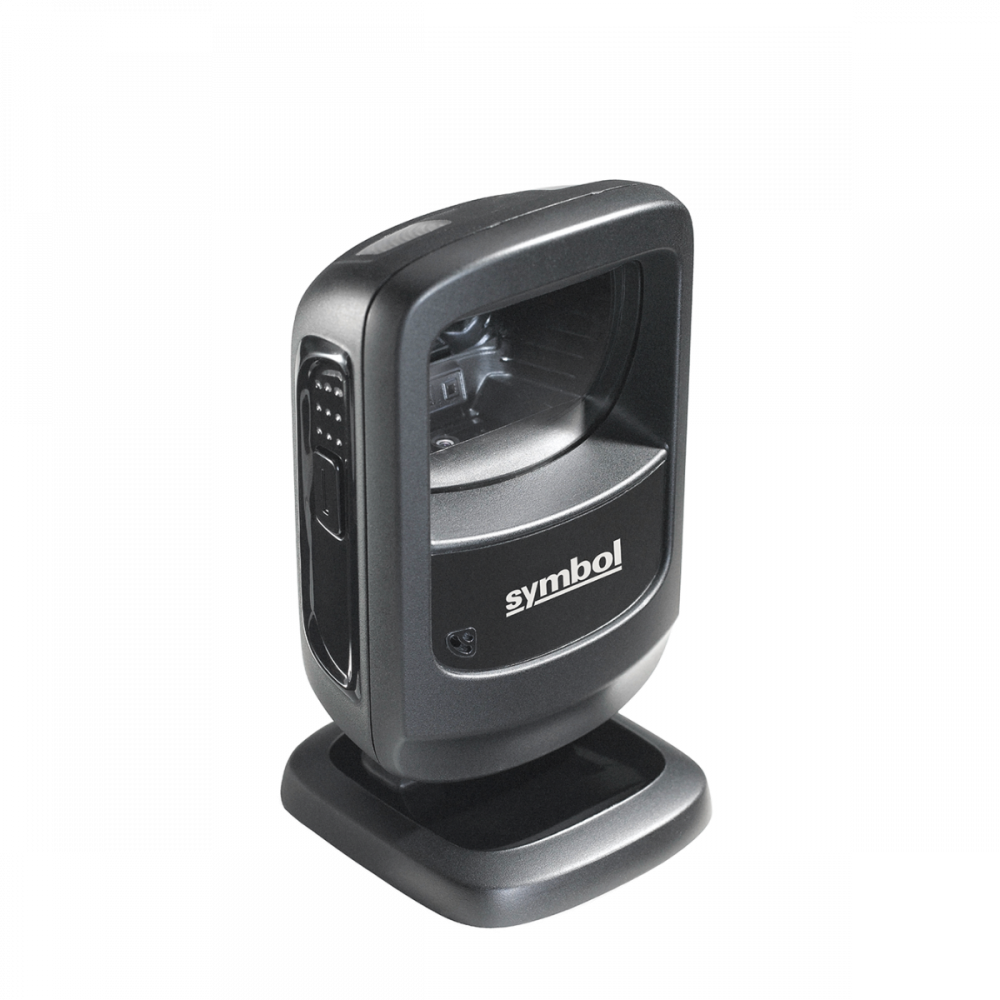

| Zebra | DS9208 |
in: 3.23 w x 3.15 d x 5.51 h cm: 8.21 w x 8.0 d x 14.0 h |
Cova |

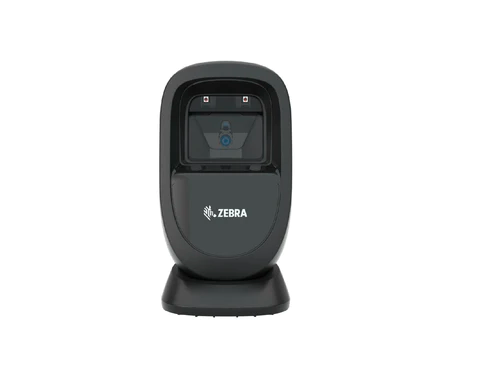

| Zebra |
DS9300 DS9300-DL DS9308 |
in: 3.4 w x 3.3 d x 5.7 h cm: 8.6 w x 8.3 d x 14.5 h |
Cova Greenline |
Label printers | |||
| Manufacturer | Model | Photo & Measurements | Also used by |

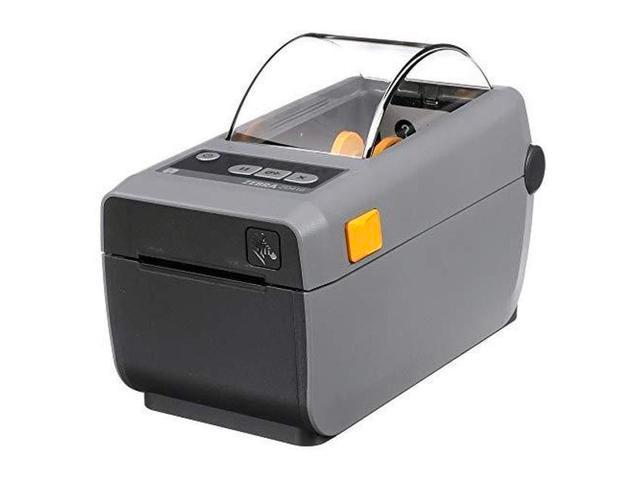

| Zebra |
ZD410 (prints labels up to 2 inches wide) |
in: 4.5 w x 8.6 l x 6.0 h cm: 11.5 w x 22.0 l x 15.1 h |
Cova Greenline TechPOS |
| Zebra |
ZD411 (prints labels up to 2 inches wide) |
in: 4.5 w x 8.6 l x 6.0 h cm: 11.5 w x 22.0 l x 15.1 h |
|
| Zebra |
ZD420 (prints labels up to 4 inches wide) |
in: 6.98 w x 8.69 l x 5.93 h cm: 17.75 w x 22.08 l x 15.07 h |
Cova |
| Zebra |

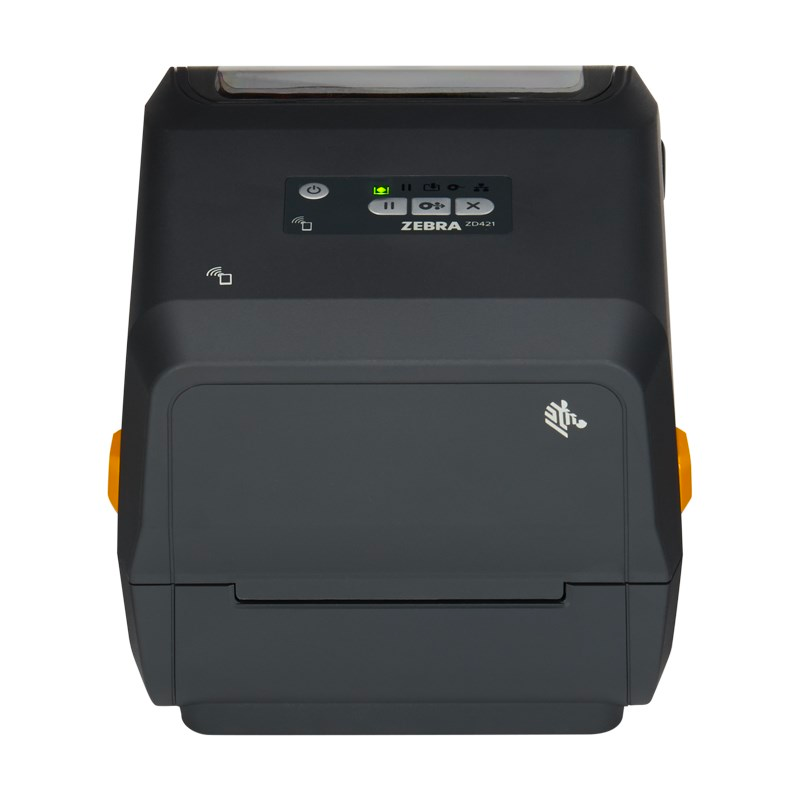

ZD421 (prints labels up to 4 inches wide) |
in: 6.98 w x 8.69 l x 5.93 h cm: 17.75 w x 22.08 l x 15.07 h |
|
Receipt and fulfillment ticket printers | |||
| Manufacturer | Model | Photo & Measurements | Also used by |

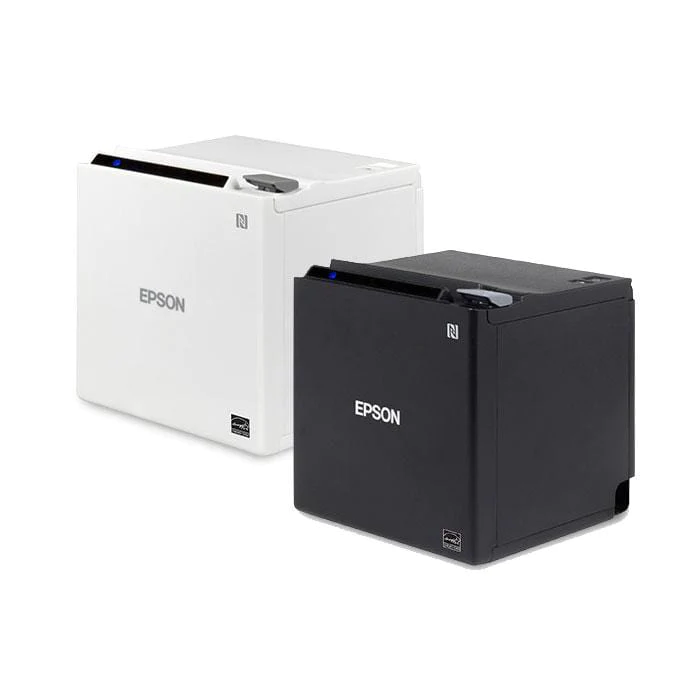

| Epson |
TM-M30II TM-M30II-H TM-M30II-NT |
in: 5 w x 5 d x 5 h cm: 12.7 w x 12.7 d x 12.7 h |
|
| Epson | TM-M50 |
in: 5 w x 5 d x 5 h cm: 12.7 w x 12.7 d x 12.7 h |
|

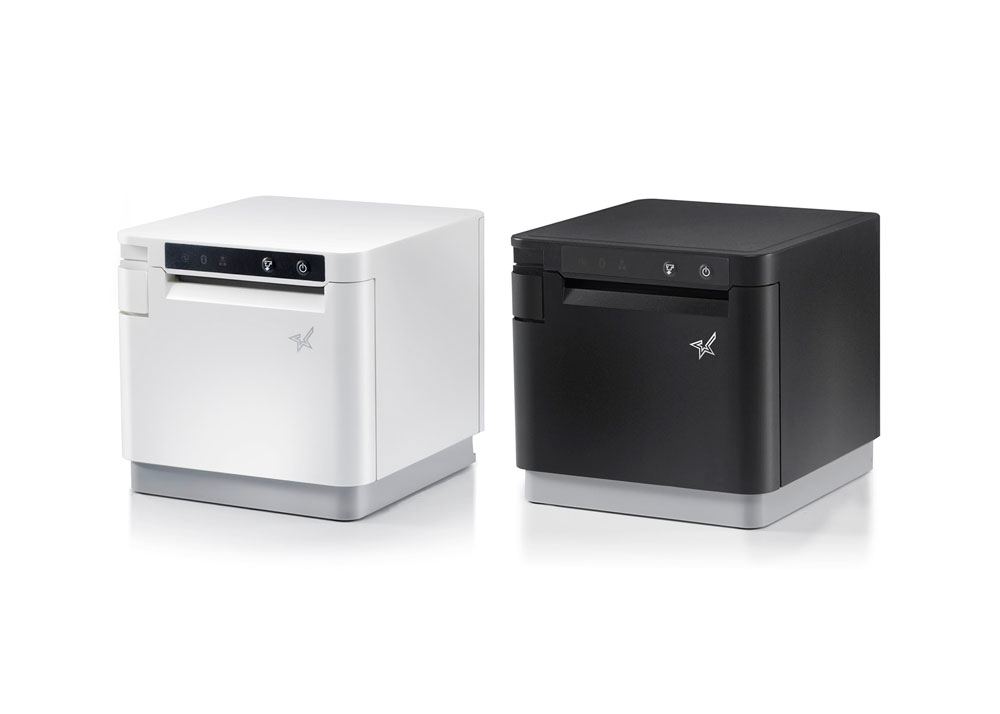

| Star Micronics |
mC-Print3 series MCP30 MCP31L MCP31L NH MCP31LB MCP31LBi MCP31WBiNH MCP31WNH |
in: 5.2 w x 4.9 d x 5.5 h cm: 13.2 w x 14.0 d x 12.5 h |
Cova Greenline |
Scales | |||
| Manufacturer | Model | Photo & Measurements | Also used by |
| A&D |
FX300iN Precision Balance, 320g x 0.001g with External Calibration, NTEP Certified *Requires specific serial adapter (FTDI or Prolific) if not purchased through Dutchie. |
in: 7.60 w x 10.33 d x 3.33 h cm: 19.3 w x 26.25 d x 8.45 h |
|
| A&D |
FX300i Precision Balance, 320g x 0.001g (Not NTEP Certified) *Requires specific serial adapter (FTDI or Prolific) |
in: 7.60 w x 10.33 d x 3.33 h cm: 19.3 w x 26.25 d x 8.45 h |
|
Customer-facing displays | |||
| Manufacturer | Model | Photo & Measurements | Also used by |

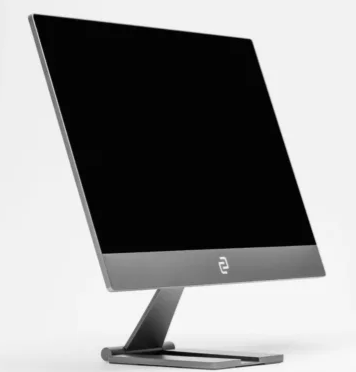

| espresso |
13-inch Touchscreen Display *Requires a USB-C connection |
13.3” display (308mm x 228mm) 5.3mm Thinness |
|

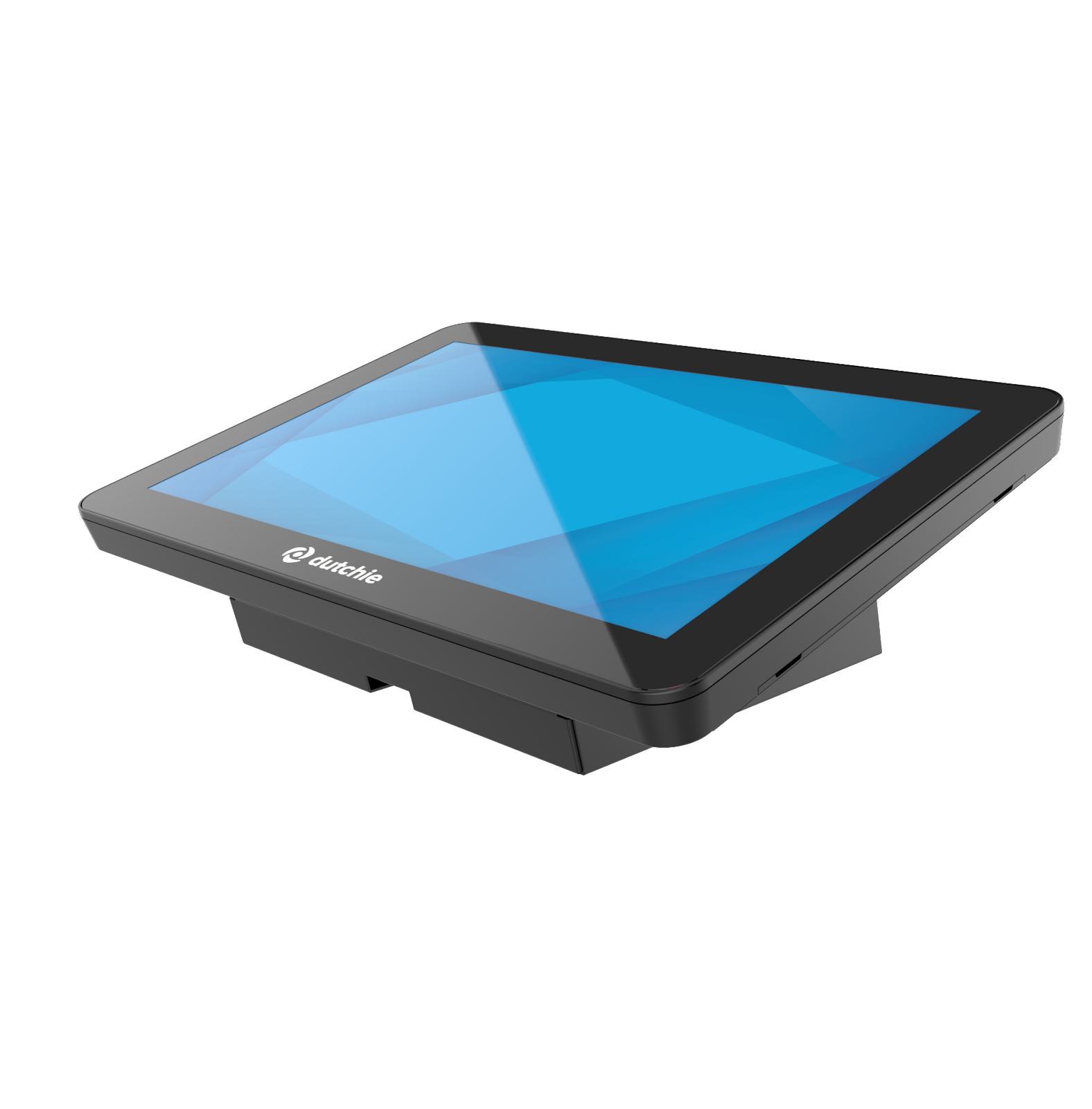

| Elo |
Customized 1002L 10” external CFD Dutchie Customer Facing Display *Requires a USB-C connection |
in: 10.02 w x 6.98 d x 1.14 h cm: 25.46 w x 17.73 d x 2.9 h |
|
Keyboard | |||
| Manufacturer | Model | Photo & Measurements | Also used by |
| Adesso | SlimTouch AKB-510HB Mini Keyboard with USB Hubs | in: 11.2 w x 4.7 d x 0.7 h cm: 28.5 w x 11.9 d x 1.8 h |
|
Cables
Label printer cables
- C2G 28102 - 6.6ft (2m) USB 2.0 A/B Cable - Black
- Label Printer Power Adapter (included with printer)
Receipt printer cables
Recommended: Epson Y-Cable CEPS-010842A - 10FT Y CABLE, POWERED USB, PUSB, USB, HOSIDEN, EDG. This cable provides both the USB connection and power, so no separate power adapter is needed with this cable
Approved alternatives:
- C2G 28102 - 6.6ft (2m) USB 2.0 A/B Cable - Black
- Receipt Printer Power Adapter (included with printer)
Scale cables

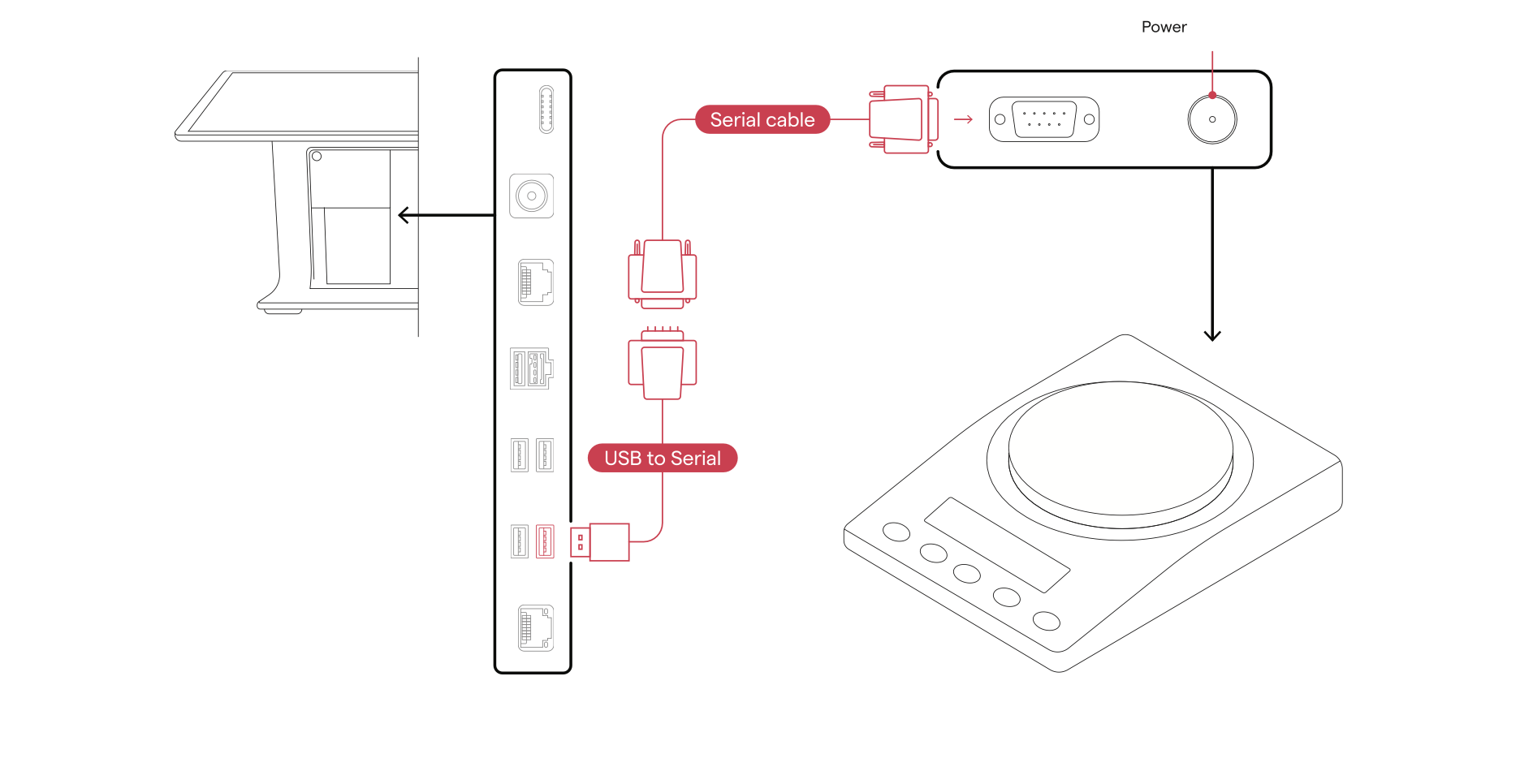

Connecting a scale to your Register Terminal requires at least two cables: an RS232 serial cable plus a USB-to-serial adapter:
Serial cables
Recommended: C2G 52148 - 6ft (1.8m) Serial RS232 DB9 Cable with Low Profile Connectors F/F - In-Wall CMG-Rated
Approved alternatives:
- C2G 52147 - 3ft (0.9m) Serial RS232 DB9 Cable with Low Profile Connectors F/F - In-Wall CMG-Rated
- C2G 52149 - 10ft (3m) Serial RS232 DB9 Cable with Low Profile Connectors F/F - In-Wall CMG-Rated
- C2G 52150 - 12ft (3.7m) Serial RS232 DB9 Cable with Low Profile Connectors F/F - In-Wall CMG-Rated
- C2G 25216 - 3ft (0.9m) DB9 F/F Serial RS232 Cable - Black
- C2G 52035 - 6ft (1.8m) DB9 F/F Serial RS232 Cable - Black
- C2G 52036 - 10ft (3m) DB9 F/F Serial RS232 Cable - Black
- C2G 25217 - 3ft (0.9m) DB9 F/F Serial RS232 Cable - Beige
- C2G 02694 - 6ft (1.8m) DB9 F/F Serial RS232 Cable - Beige
- C2G 02695 - 10ft (3m) DB9 F/F Serial RS232 Cable - Beige
If you need additional length, use one of these couplers to link two of the above serial cables together:
- C2G 02781 - DB9 F/F Serial RS232 Mini Gender Changer (Coupler)
- Axiom DB9FFC-AX - DB9 F/F Mini Gender Changer
Or, you can use one of these USB extension cables to connect the Register terminal to one of the USB-to-serial adapters from the next section.
- C2G s52106 - 3.3ft (1m) USB 2.0 A Male to A Female Extension Cable - Black
- C2G 52107 - 6.6ft (2m) USB 2.0 A Male to A Female Extension Cable - Black
- C2G 52108 - 9.8ft (3m) USB 2.0 A Male to A Female Extension Cable - Black
USB-to-serial adapters
Recommended: C2G 26886 - 1.5ft (0.46m) USB to DB9 Serial RS232 Adapter Cable
Approved alternative: TrippLite U209-000-R - USB-A to RS232 (DB9) Serial Adapter Cable - (M/M), 5 ft. (1.52 m)
Receipt Paper and Labels
| Hardware Component | Model | Specification | Example sizes |
|---|---|---|---|
| Epson Receipt Printer |
TM-M30II TM-M30II-H TM-M30II-NT TM-M50 |
Width: 3.12" Max roll diameter: 3.27" Core diameter: .71" (min) |
3 1/8" x 230' |
| Star Micronics Receipt Printer | mC-Print3 series |
Width: 3.12" Max roll diameter: 3.27" Core diameter: .71" (min) |
3 1/8" x 230' |
| Zebra Label Printer | ZD410 |
Max label width: 2.25" Max roll diameter: 5" Core diameter: .5-1" |
2 x 1 in 2.25 x 1.25 in |
| Zebra Label Printer |
ZD420 ZD421 |
Max label width: 4.25" Max roll diameter: 5" Core diameter: .5-1" |
2 x 1 in 2 x 3 in 4 x 6 in 4 x 2.25 in 4 x 3 in |
What's next?
Connect and configure your Dutchie POS register hardware:
